Motor&Electromechanical Factory
Motor Co., Ltd. was founded in 1958 and is an industrial enterprise that integrates scientific research, development, production, and sales. Its products include electric motors, ordinary rolling door machines, rolling door machines for fireproof rolling shutters, fireproof rolling shutter controllers, movable smoke barrier wall controllers, explosion-proof opening and closing machines, and frequently started rolling door machines. Since 1987, the company has developed various models of fireproof rolling shutter rolling door machines, fireproof rolling shutter controllers, and movable smoke barrier hanging wall controllers, which have passed the testing of the "National Fixed Fire Extinguishing System and Refractory Component Quality Supervision and Inspection Center" and the "National Fire Electronic Product Quality Supervision and Inspection Center", and have been certified by the "Emergency Management Department Fire Product Qualification Assessment Center", all of which have obtained the "Fire Product Certification Certificate". The company passed the ISO9002 quality management system certification in 1998 and obtained the "Quality Management System Certification Certificate". Since 1997, the company has continuously introduced advanced technology and high-precision equipment to improve product quality, and has also started to undertake export processing business. In 1998, it established a long-term processing cooperation relationship with Toshiba Kawamata Precision Machinery in Japan for motor components, and in 2015, it established long-term processing cooperation relationships with multiple American companies for components. The company adheres to the business philosophy of "science, efficiency, integrity, and innovation", and has developed various specifications of wind turbines, new energy motors, and oilfield motors in 2021 based on years of industry experience in electric motor manufacturing and the company's pioneering and innovative spirit.
The comprehensive ISO9002 international quality management system and strict management ensure the perfect guarantee of product quality. The product has reliable performance, stable quality, and comprehensive service, and is highly trusted by users both domestically and internationally.

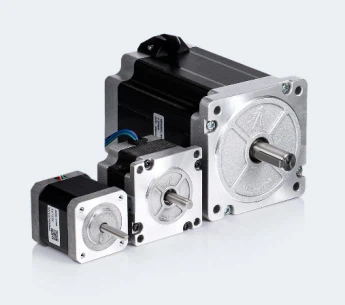

Stepping motor
Bus type driver
Digital stepper motor and driver
Closed loop stepper motor and driver
Five phase stepping system
Low voltage servo system
Communication servo system
Hybrid servo system

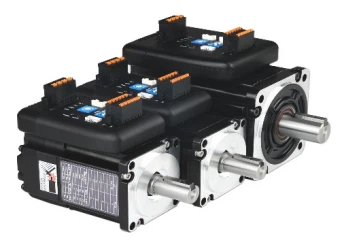

Integrated motor
Motion Control PLC
PC-BASE products
Software and Accessories Characteristics of stepper motors
Advantages of stepper motors
① The angular displacement (or linear displacement) of a stepper motor is proportional to the number of electrical pulses, so the stepper motor (or linear velocity) is also proportional to the pulse frequency. Within the load capacity range of the stepper motor, its step angle and rotation are affected by voltage fluctuations and load changes, and are not affected by environmental conditions such as temperature, air pressure, impact, and operation. Therefore, stepper motors are suitable as actuators in open-loop systems.
② Stepper motors have good control performance. By changing the pulse frequency, the speed (or linear velocity) can be adjusted over a large range, and can quickly start, brake, and reverse. If the same pulse motor is used, they can operate synchronously.
Integrated motor
③ The stepper motor has a fixed number of steps per revolution, and operates without losing steps. Its step distance error will not accumulate, meaning that although there is an error in each step, the accumulated error is zero after one revolution. These characteristics enable it to function as a servo component in fully controlled open-loop systems, greatly simplifying the entire system while ensuring reliable operation. After adopting a position detection device, it can also be used in closed-loop systems.
④ Some types of stepper motors still have positioning torque when the power supply is stopped, and some types of stepper motors have self-locking ability with certain phase windings remaining energized without the need for mechanical braking devices.
⑤ The range of step angle variation of stepper motors is relatively large, and in the case of small step angles, it is often possible to operate without going through the reducer surface
Due to these characteristics, stepper motors are increasingly widely used in digital control systems, such as CNC machine tools, mapping machines, automatic recording instruments, digital/analog conversion devices, as well as in industries such as aviation, missiles, and radio.

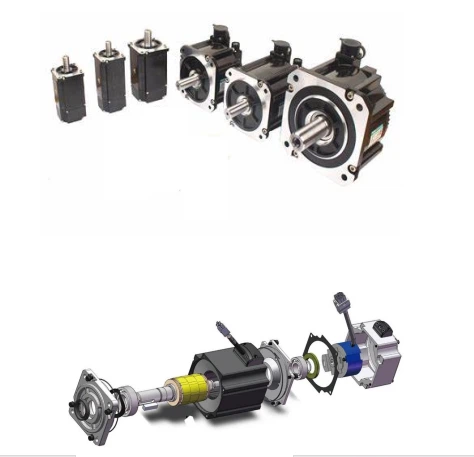

Servo motor
Product series
DC motor (brushed and brushless)
AC motor (asynchronous and synchronous)
Framed motor, frameless motor, and modular motor
Rotating motors and linear motors
High voltage motor, medium voltage motor, and low voltage motor
Washable motors and sanitary motors
Submersible motor Advantages of servo motors
1. Accuracy: Closed loop control of position, speed, and torque has been achieved; Overcoming the problem of stepping motor out of step;
2. Speed: Good high-speed performance, generally rated speed can reach 2000-3000 revolutions per minute;
3. Adaptability: Strong overload resistance, able to withstand loads up to three times the rated torque, especially suitable for situations with instantaneous load fluctuations and fast starting requirements;
4. Stability: Running smoothly at low speeds, there will be no stepping phenomenon similar to that of a stepper motor during low-speed operation. Suitable for occasions with high-speed response requirements;
5. Timeliness: The dynamic response time of motor acceleration and deceleration is short, usually within a few tens of milliseconds;
6. Comfort: significantly reduced heat and noise.
Permanent magnet motor
Product series
Permanent magnet brushless DC motor
Variable speed permanent magnet synchronous motor
Permanent magnet synchronous generator Permanent magnet motors are widely used in industries such as general machinery, metallurgy, chemical engineering, light industry, and textiles.
1. Its application areas include:
1.1. Electric and hybrid vehicles, as permanent magnet motors have high efficiency and high power density.
1.2. Industrial applications, such as industrial automation, pumps, fans, compressors, etc.
1.3. Household appliances such as washing machines, refrigerators, air conditioners, etc.
1.4. Aerospace, also has applications in drones, aircraft, and satellites.
1.5. Medical equipment, such as medical imaging devices, surgical instruments, etc.
1.6. Renewable energy sources, such as wind turbines and small hydroelectric generators.
1.7. Permanent magnet motors are commonly used in rail transit, trains, subways, and trams.
1.8. Electric tools, such as electric drills, electric screwdrivers, etc
2. Permanent magnet motors have the characteristics of energy saving, environmental protection, high efficiency, and reliability.

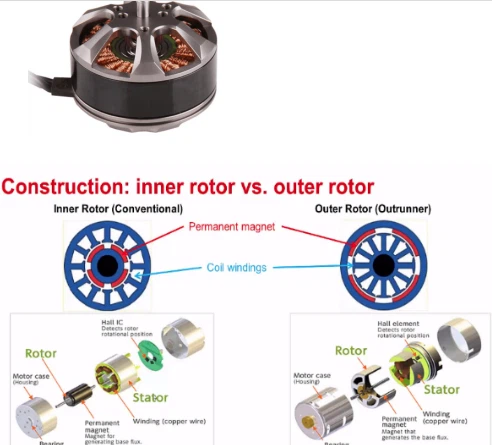

Rotor motor
Product series
1.External rotor brushless motor
2.Internal rotor brushless motor Outer rotor brushless motor
Economical and effcient, High
torque output at low speed
Outer rotor brushless motor’s coil is inside and has outer permanent magnet
rotates. It has a larger moment of inertia in the same outside diameter, so
generally designed as a disk, and the axial length is short. It can be designed
into multi-groove and multi-pole, high torque at low speed and direct drive
occasions to reduce product cost and volume. Inner rotor brushless motor
Fast response, High power density
Inner rotor brushless motor’s coil is outside and has inner permanent magnet
rotates. It has low moment of inertia and is suitable for situations requiring fast
response and high torque moment of inertia ratio, especially for servo
applications. Beneft from the outer stator core , it has excellent heat
dissipation conditions and is easy to install. The inner rotor motor is more
suitable for the occasion of indirect drive by the deceleration mechanism, the
motor can be designed with higher speed and higher power density

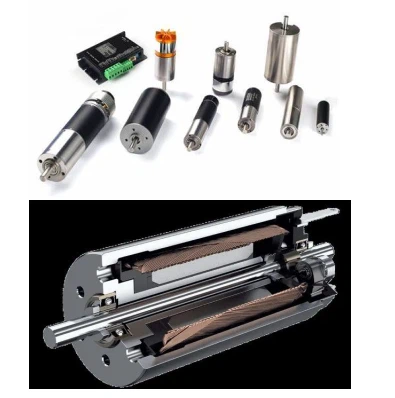

Coreless Motor
Product series
1.Coreless brushless motor
2.Coreless brushed motor Coreless brushless motor
Energy saving, high effciency,fast response, low noise
Coreless brushless motor stator has no groove torque and winding is cupped, it
has compact structure, low operating noise, small moment of inertia, high energy conversion efficiency, rapid start and braking and extremely fastresponse. Coreless brushed motor
Energy saving, high effciency,
fast response, low noise
Coreless brushed motor winding is cupped and without iron core. It has
compact structure, low operating noise, small moment of inertia, high energy
conversion effciency, rapid start and braking and extremely fast response.
